| CPU |
- Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
|
| Chipset |
- Intel® P55 Express Chipset
|
| Memory |
- 6 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
- Dual channel memory architecture
- Support for DDR3 2600+/2200/1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* Go to Memory Support List for the latest memory support list. |
| Audio |
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby® Home Theater
- Support for S/PDIF In/Out
- Support for CD In
|
| LAN |
- 2 x RTL8111D chips (10/100/1000 Mbit)
- Support for Teaming
- Support for Smart Dual LAN
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) (The PCIEX16_1 and PCIEX8_1 slots conform to PCI Express 2.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
- 2 x PCI Express x1 slots
- 2 x PCI slots
* When set Turbo SATA3 / USB3.0 (Marvell 9128 /NEC USB 3.0 Controller) to enable in BIOS setup, 1st PCIex16 slot will run at x8 bandwidth and 2nd PCIex16 slot will be disabled. |
| Multi-Graphics Technology |
- Support for ATI CrossFireX™/NVIDIA SLI technology Technology (The PCIEX16_1 and PCIEX8_1 slots only.)
|
| Storage Interface |
Chipset:
- 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
- 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to SATA 6Gb/s devices
- Support for SATA RAID 0
JMB362 chip:
- 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8213 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
|
| USB |
Chipset
- Up to 12 USB 2.0/1.1 ports (8 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip
- Up to 2 USB 3.0/2.0 ports on the back panel
|
| IEEE 1394 |
- T.I. TSB43AB23 chip
- Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x floppy disk drive connector
- 1 x IDE connector
- 6 x SATA 3Gb/s connectors
- 2 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x power fan header
- 1 x Chipset fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x CD In connector
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x IEEE 1394a header
- 1 x serial port header
- 1 x clearing CMOS button
- 1 x power button
- 1 x reset button
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 2 x IEEE 1394a ports
- 6 x USB 2.0/1.1 ports
- 6 x USB 3.0/2.0 ports
- 2 x eSATA/USB Combo connectors
- 2 x RJ-45 ports
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE IT8720 chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU/System fan speed control
|
| BIOS |
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Unique Features |
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune
- Support for Dynamic Energy Saver™ 2
- Support Smart TPM
- Support for Smart 6™
- Support for Q-Share
|

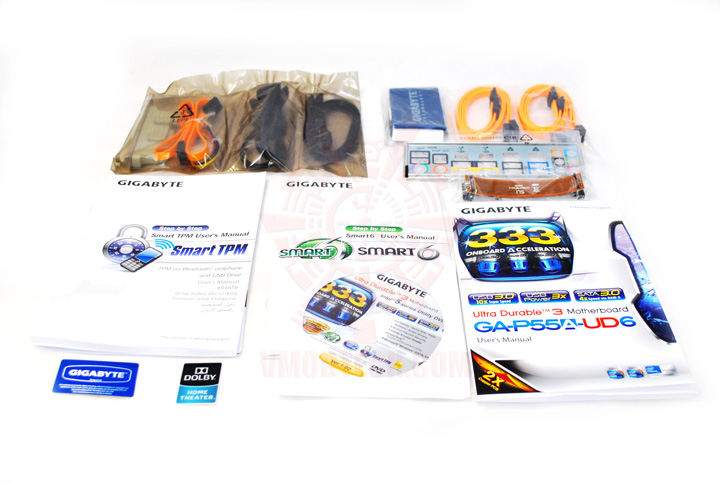

| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft® Windows 7/Vista/XP
|
| Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
|
| Note |
- TPM function is optional due to different regional policy
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
|
