ASUS P5Q Deluxe : The Absolute Power

/ บทความโดย: admin , 17/06/2008 23:35, 966 views / view in EnglishEN
Share


รายละเอียดจากเวบไซต์ผู้ผลิต


>>Click<<





FEATURES & SPECIFICATIONS








































































ASUS® P5Q Deluxe Edition
Detailed Specifications
CPU Intel Socket 775 Core™2 Quad
Core™2 Extreme
Core™2 Duo
Pentium® Extreme
Pentium® D
Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm CPU Dual & Quad Core Processors
Chipset Intel® P45
Intel® ICH10R
Intel® Fast Memory Access Technology
System Bus 1600/1333/1066/800 MHz
Memory 4 x DIMM, Max. 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

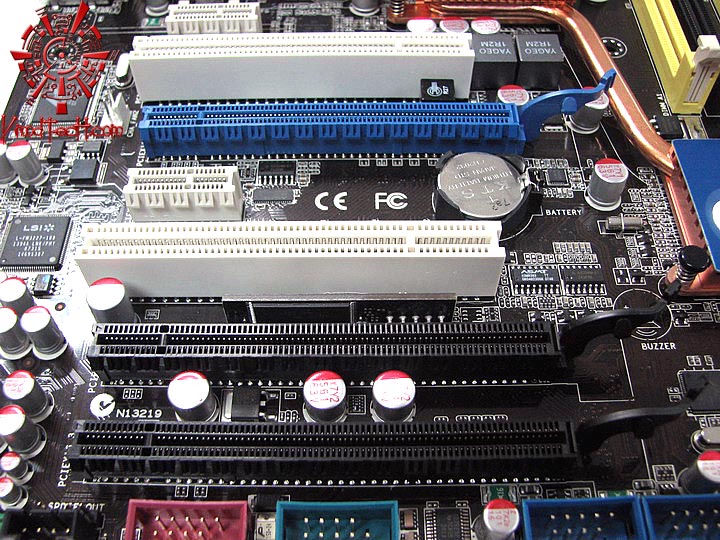

Expansion Slots

2 x PCI Express 2.0 x16 slots, support ATI CrossFireX™ at x8 speed (PCIe 2.0 x16_1 blue, PCIe 2.0 x16_2 black*)
1 x PCI Express x16 slot at maximum x4 speed (black)**
2 x PCI Express x1 slots
2 x PCI slots
*PCIe 2.0 x16_2 slots (black at maximum x8 link)
**If any other PCI Express x1 slot is occupied, this slot will downgrade to a maximum x1 speed.

Multi-GPU Support Supports up to quad ATI CrossFireX™ GPUs
Storage Southbridge:
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell 88SE6121 controller:
1 x UltraDMA 133/100/66 for up to 2 PATA devices
1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
Silicon Image SIL5723 controller (Drive Xpert Technology):
2 x SATA 3.0 Gb/s ports
Supports EZ Backup and Super Speed
LAN Dual Gigabit LAN controllers
Marvell® 88E8056 / 88E8001 Gigabit LAN controllers featuring AI NET2
Audio ADI® AD1988B 8 -Channel High Definition Audio CODEC
Supports Jack-Detecting, Multi-streaming, and Front Panel Jack-Retasking
Coaxial / Optical S/PDIF outports on back I/O panel
ASUS AI Audio 2
ASUS Noise Filtering
IEEE 1394 LSI® L-FW3227 controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB 10 USB 2.0 ports (4 ports at mid-board, 6ports at back panel)
ASUS Unique Features ASUS Power Saving Solution

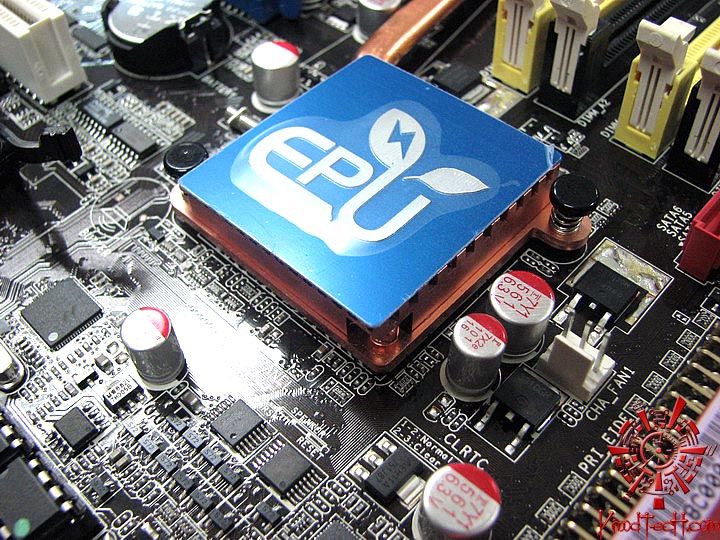

  • ASUS EPU-SIx Engine

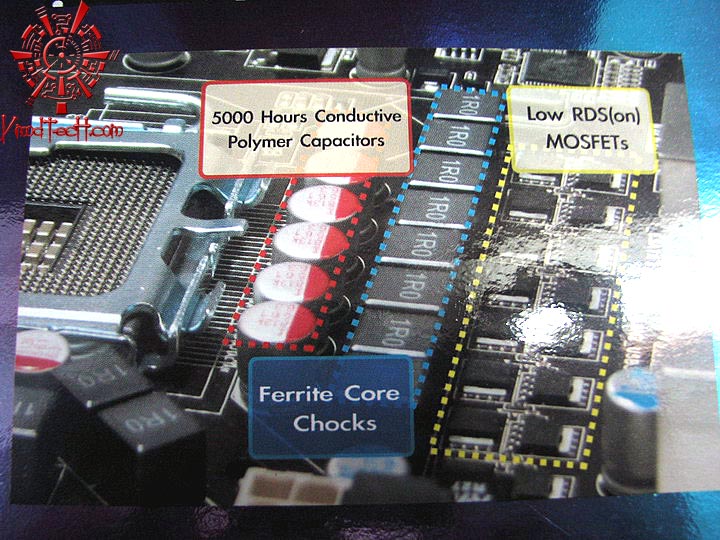

  • ASUS Xtreme 16-phase Power Design
  • ASUS AI Nap
    ASUS AI Lifestyle

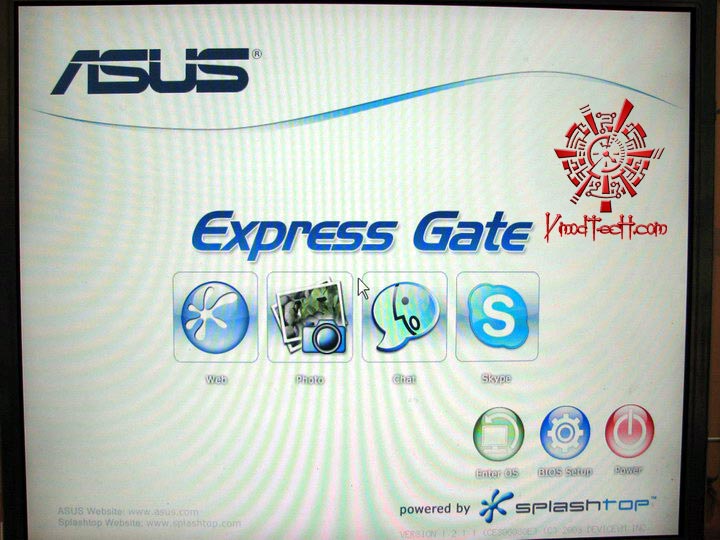

  • ASUS Express Gate SSD
  • ASUS AI Direct Link
    ASUS Quiet Thermal Solution

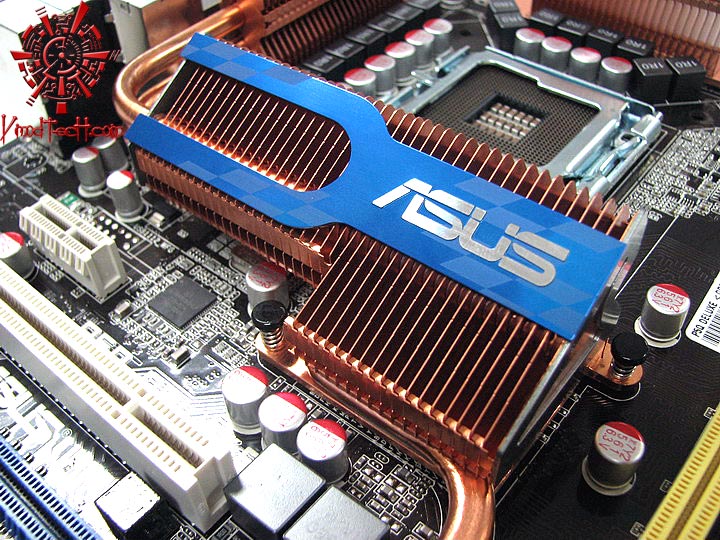

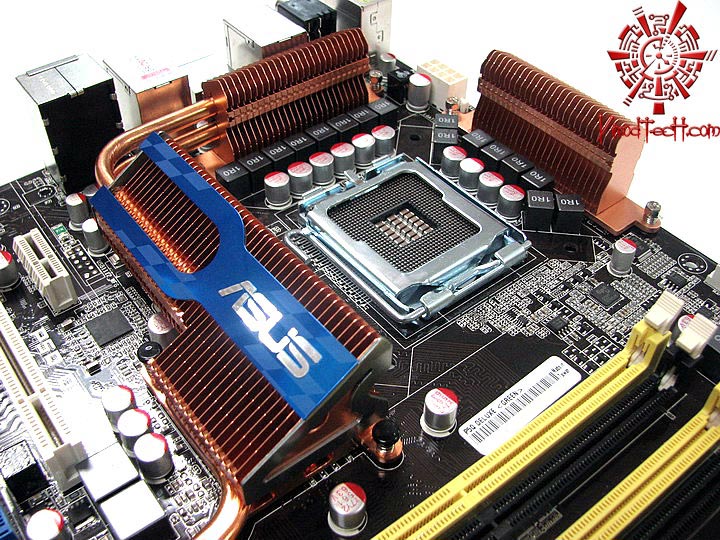

  • ASUS Fanless Design: Pure Copper Heat-pipe solution

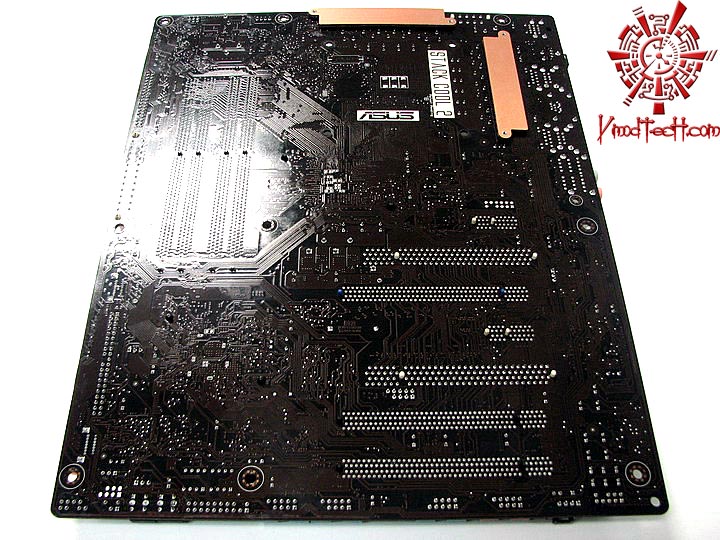

  • ASUS Fanless Design: Stack Cool 2
  • ASUS Fan Xpert 2
    ASUS EZ DIY

  • ASUS Drive Xper
  • ASUS Die-Hard BIOS
  • ASUS Q-Connector
  • ASUS Q-Shield
  • ASUS O.C. Profile
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 2
    • ASUS Stylish Features ASUS MyLogo3™

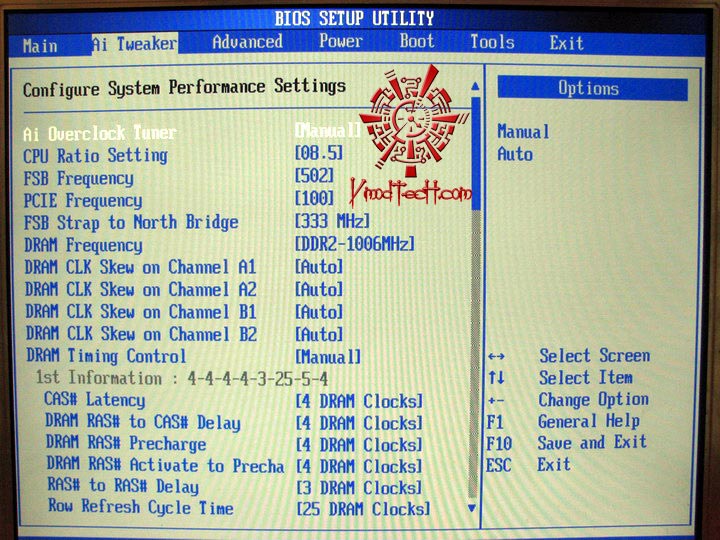

    ASUS Exclusive Overclocking Features Intelligent Overclocking Tools

  • ASUS AI Booster Utility

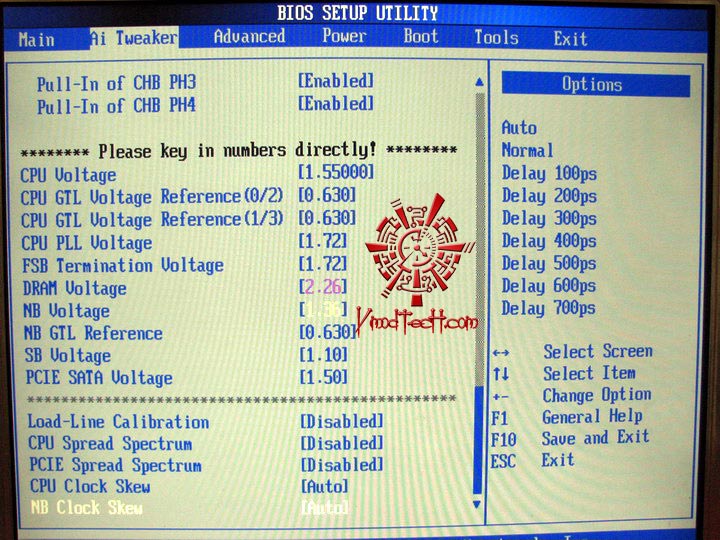

    Precision Tweaker 2

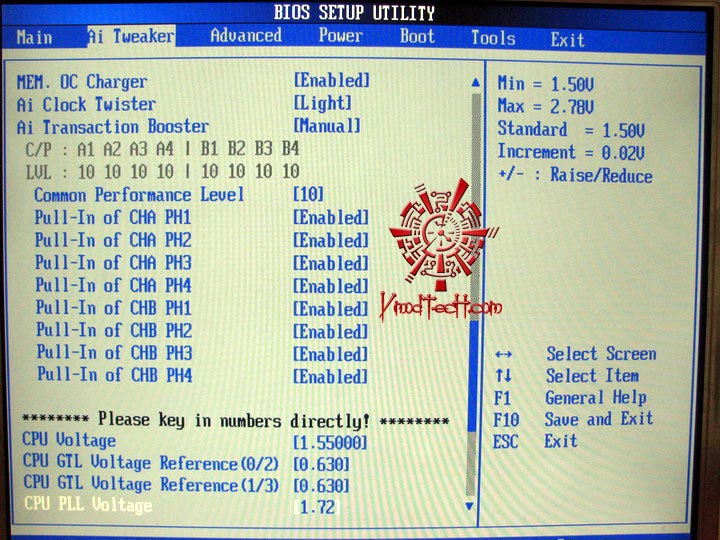

  • vDIMM: 65 -step DRAM voltage control
  • vCore: Adjustable CPU voltage at 0.00625V increment
  • vChipset (N.B.): 49-step voltage control
  • vFSB Termination: 16-step reference voltage control
  • vCPU PLL: 65-step CPU PLL voltage control
    SFS (Stepless Frequency Selection)

  • FSB tuning from 200MHz up to 800MHz at 1MHz increment
  • Memory tuning from 800MHz up to 3200MHz
  • PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
    Overclocking Protection

  • ASUS C.P.R.(CPU Parameter Recall)

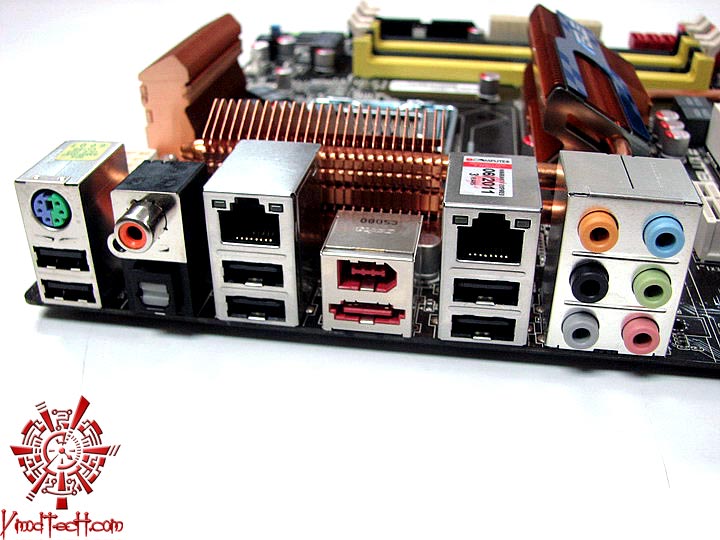

    • Back Panel I/O Ports 1 x PS/2 Keyboard
    1 x External SATA
    1 x S/PDIF Out (COaxial & Optical) port
    1 x IEEE 1394a
    2 x LAN(RJ45) port
    6 x USB 2.0/1.1
    8 Channel Audio I/O ports
    Internal I/O Connectors 2 x USB connectors support additional 4 USB ports
    1 x Floppy disk drive connector
    1 x IDE connector

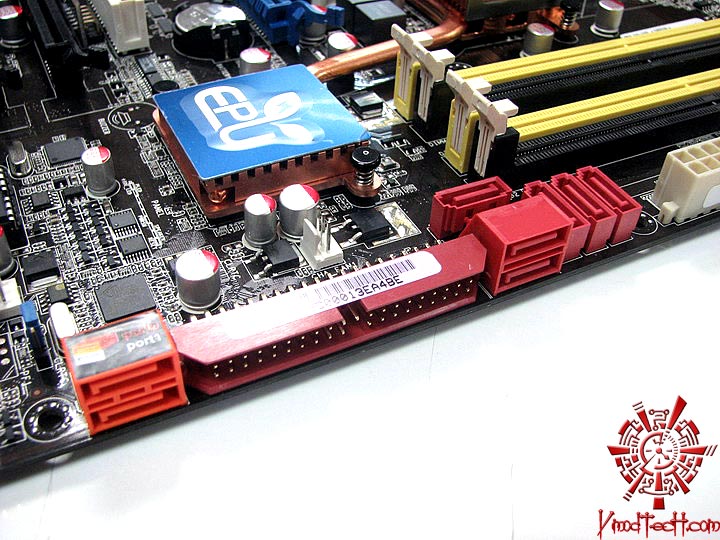

    6 x SATA connectors (red)
    1 x IEEE 1394a connector
    1 x CPU Fan connector
    3 x Chassis Fan connectors
    1 x Power Fan connector
    1 x COM connector
    1 x S/PDIF Out connector
    8-pin ATX 12V Power connector
    24 -pin ATX Power connector
    Front panel audio connector
    Chassis Intrusion connector
    CD/AUX audio in
    System Panel Connector
    2 x Drive Xpert SATA connectors (Orange)
    System Panel (Q-Connector)

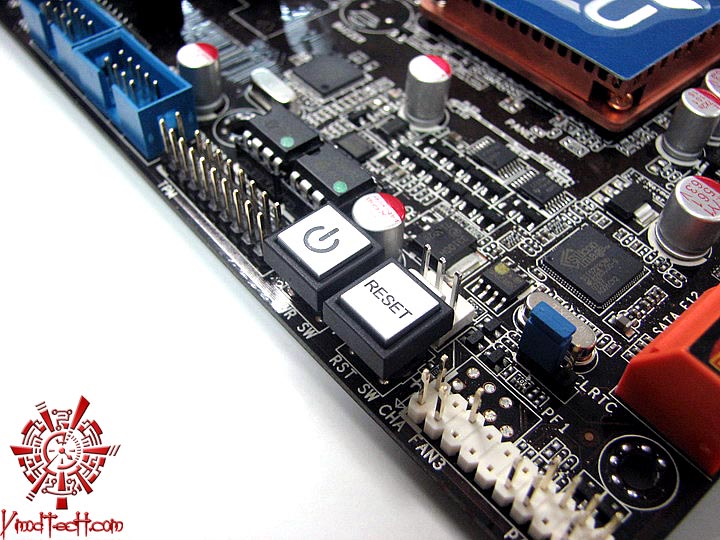

    1 x Power on switch
    1 x Reset Switch
    BIOS 16 Mb AMI BIOS, PnP, DMI 2.0, WIM 2.0, SM BIOS 2.4
    ASUS CrashFree BIOS 3
    Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE, Chasis intrusion

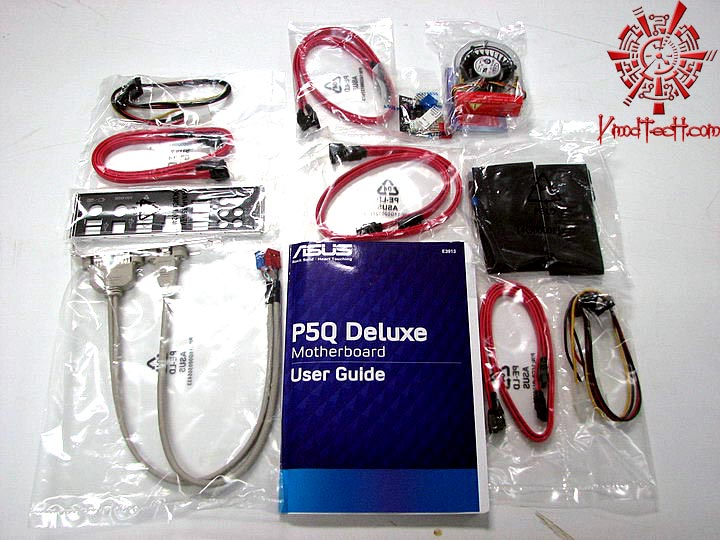

    Accessories UltraDMA 133/100/66 cable
    FDD cable
    8 x Serial ATA cables
    1 x 2-port Serial ATA power cable
    ASUS Q-Shield
    User’s manual
    ASUS WiFi-AP @n manual
    3 in 1 Q-connector
    1 x 2-port USB2.0
    1-port IEEE1394 module
    1 x Optional Fans for Water-Cooling or Passive-Cooling only

    Support DVD Contents Drivers
    ASUS PC Probe II
    ASUS AI Suite
    ASUS EPU-Six Engine Utility
    ASUS Drive Xpert Utility
    ASUS AI Direct Utility
    ASUS Update
    Image-Editing Suite
    Form Factor ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x24.4 cm )
    Dimensions 270mm x 100mm x 32mm (L x H x D)
    10.5in x 3.93in x 1.26in


    Source : bjorn3d.com

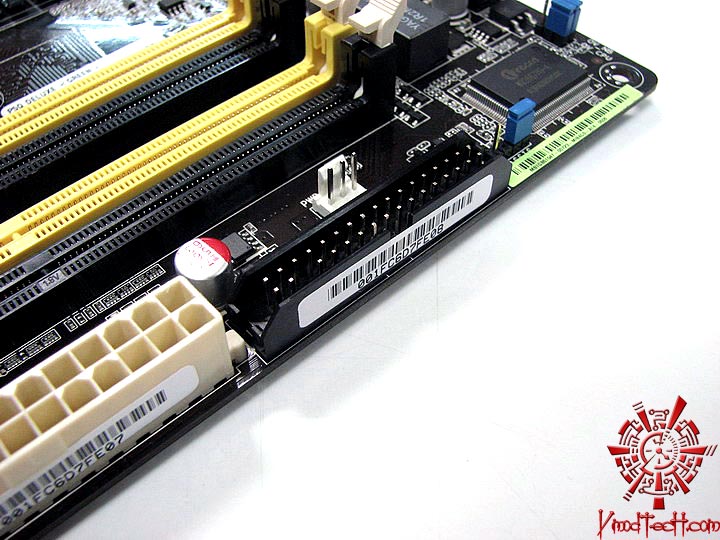

    ไปดูหน้าตาของเมนบอร์ดกันดีกว่าครับ

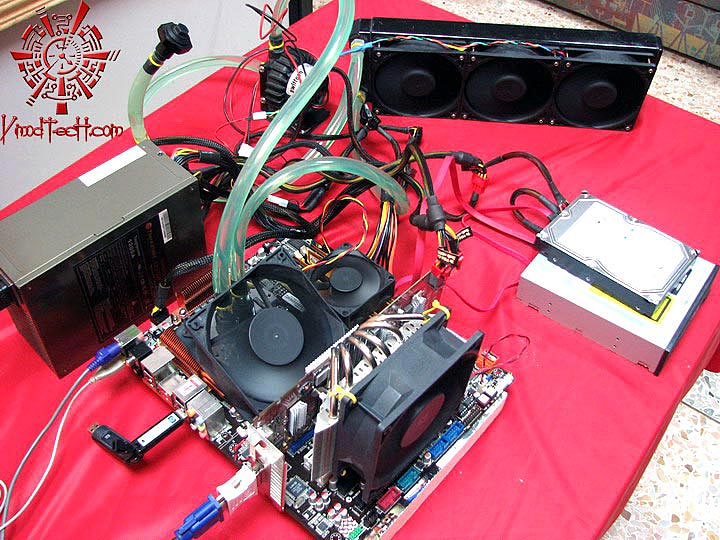

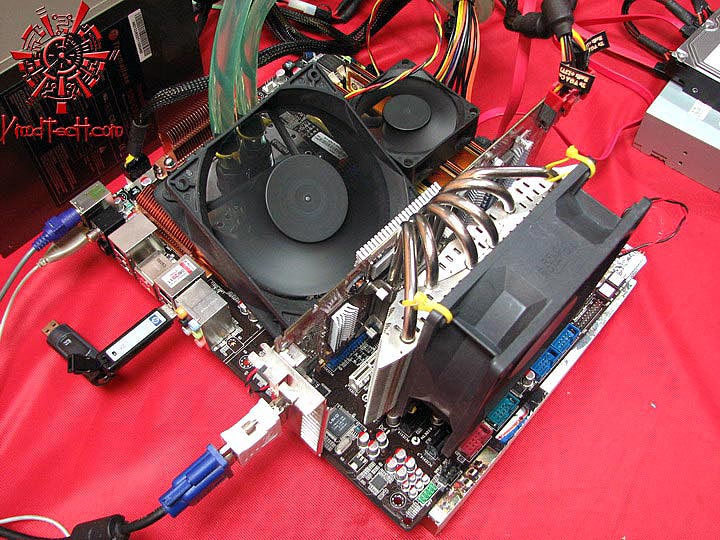

    SYSTEMS
    CPU INTEL Core2Extreme QX9770 Supported by Intel Thailand
    MOBO ASUS P5Q Deluxe
    MEMORY Crucial Ballistix PC6400 2*1GB
    GRAPHIC CARD Sapphire HD2900XT  @  928/1,179MHz
    HDD Seagate 500GB
    PSU TT Toughpower 1200W
    COOLING Swiftech Water Cooling Kit
