GIGABYTE GA-X58A-UD7 : X58 SLGMX Chipset!!

/ บทความโดย: Venom-Crusher , 27/01/2010 02:11, 16,718 views / view in EnglishEN
«»
Share

x58a ud7 1 GIGABYTE GA X58A UD7 : X58 SLGMX Chipset!!

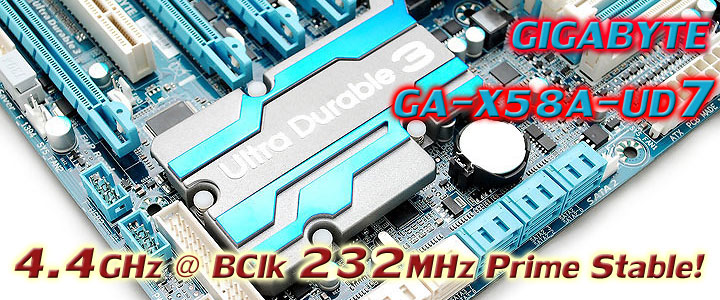

…สวัสดีครับ สำหรับในวันนี้ผมก็มีเมนบอร์ดแรงๆเทพๆมาแนะนำกับรีวิวกันอีกเช่นเคย ซึ่งในคราวนี้จะเป็นของทาง GIGABYTE ซึ่งมากันในรุ่น GA-X58A-UD7 เพื่อไม่ให้เป็นการเสียเวลาไปดูสเป็คต่างๆของตัวเมนบอร์ดกันก่อนเลยนะครับ

.

GIGABYTE GA-X58A-UD7

Intel® X58 + ICH10R Chipset

  1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
  3. 3X USB power delivery for greater compatibility and extra power for USB devices
  4. Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed
  5. Supports the newest Intel Core i 7 processors in socket LGA1366 with QPI 6.4 GT/s
  6. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  7. Supports 3 channel DDR3 2100+ memory
  8. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  9. Advanced 24+2+2 power phase design with VRD 11.1 support
  10. New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity
  11. Unique hardware control IC to provide more precision voltage control
  12. 100% 50,000 hour lifespan Japanese solid capacitors design
  13. Onboard Debug LED display simplifies motherboard troubleshooting
  14. Patented DualBIOS with dual hardware BIOS protection
  15. 2 Gigabit Ethernet LAN with Teaming functionality
  16. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  17. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  18. Blu-ray playback outputs supported by high quality 18dB SNR ALC889 HD audio
  19. Compatible with Window 7 to deliver the best operation experience
  20. Meet European Union EuP(Energy-using Products) requirement

Specifications

CPU
  1. Support for an Intel® Core™ i7 series processor in the LGA1366 package
    (Go to GIGABYTE’s website for the latest CPU support list.)
  2. L3 cache varies with CPU
QPI
  1. 4.8GT/s, 6.4GT/s
Chipset
  1. North Bridge: Intel® X58 Express Chipset
  2. South Bridge: Intel® ICH10R
Memory
  1. 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
  2. Dual/3 channel memory architecture
  3. Support for DDR3 2200/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE’s website for the latest memory support list.)
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 2 x RTL8111D chip (10/100/1000 Mbit)
  2. Support for Teaming
  3. Support Smart Dual LAN
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
  2. 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
  3. 2 x PCI Express x1 slots
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 2-Way/3-Way ATI CrossFireX™/NVIDIA SLI technology
Storage Interface South Bridge:

  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Marvell 9128 chip:

  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
  2. Support for SATA RAID 0, and RAID 1

GIGABYTE SATA2 chip:

  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, and JBOD

JMicron JMB362 chip:

  1. 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:

  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge

  1. Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)

NEC chip:

  1. Up to 2 USB 3.0/2.0 ports on the back panel
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 2 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 3 x system fan headers
  9. 1 x power fan header
  10. 1 x North Bridge fan header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x CD In connector
  14. 1 x S/PDIF In header
  15. 1 x S/PDIF Out header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x IEEE 1394a header
  18. 1 x power button
  19. 1 x reset button
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x clearing CMOS button
  6. 2 x IEEE 1394a ports
  7. 4 x USB 2.0/1.1 ports
  8. 2 x USB 3.0 ports
  9. 2 x eSATA/USB Combo connectors
  10. 2 x RJ-45 port
  11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/North Bridge temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU fan fail warning
  6. CPU/System fan speed control (Note 4)
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 5)
  8. Support for Dynamic Energy Saver™ 2
  9. Support for Smart 6™
  10. Support for Auto Green
  11. Support for eXtreme Hard Drive
  12. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft® Windows® 7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Note (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 3) The PCIEX8_1 and PCIEX8_2 slots share bandwidth with the PCIEX16_1 and PCIEX16_2 slots espectively. When PCIEX8_1 is populated with an expansion card, the PCIEX16_1 slot will operate at up to x8 mode; when PCIEX8_2 is populated with an expansion card, the PC IEX16_2 slot will operate at up to x8 mode.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

.

More information >>Click<<

…อยากบอกว่าเมนบอร์ดตัวนี้สเป็คมากันเต็มเหนี่ยวจริงๆครับ เอาเป็นว่าอย่าถามว่าเมนบอร์ดตัวนี้มีอะไรบ้างเลยครับ ให้ถามว่าขาดอะไรบ้างดีกว่า อย่ารอช้าตามไปดูบอร์ดงามๆนี้พร้อมๆกันที่หน้าถัดๆไปกันเลยดีกว่าครับ

.
