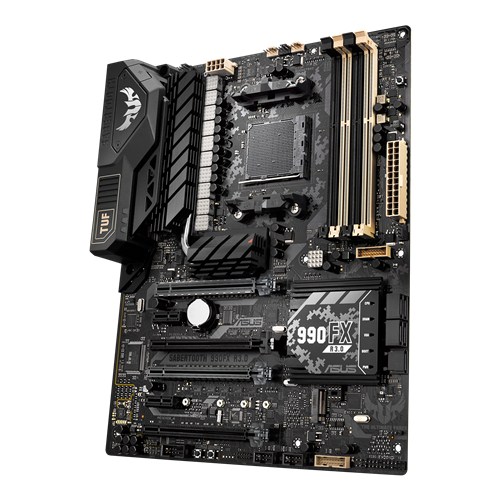

ASUS เปิดตัวมาเธอร์บอร์ด AMD AM3+ รุ่นล่าสุด TUF SABERTOOTH 990FX R3.0 ที่มีจุดเด่นที่รองรับ USB 3.1 Type-A & Type-C  , USB 3.0 , 3-Way SLI/CFX และ M.2 SLOT ทันสมัยกันสุดๆไปเลย

Read more : Wccftech.com

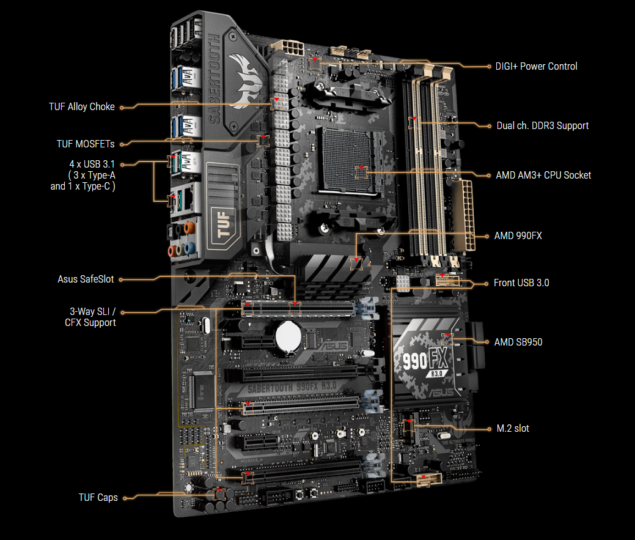

Specifications Of ASUS SABERTOOTH 990FX R3.0

CPU support

AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors

Supports AM3+ 32nm CPU

Supports CPU up to 8 cores

Supports CPU up to 220W

AMD Cool ‘n’ Quiet Technology

Chipset

AMD 990FX/SB950

Memory

4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

System Bus

Up to 5.2 GT/s HyperTransport 3.0

Multi-GPU Support

Supports NVIDIA 3-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

Expansion Slots

3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8)

1 x PCIe 2.0 x16 (x4 mode, black)

2 x PCIe 2.0 x1

Storage

AMD SB950 controller

5 x SATA 6Gb/s port

Support Raid 0, 1, 5, 10

AMD SB950 controller

1 x M.2 Socket 3, gray, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)

LAN

Intel I211, 1 x Gigabit LAN Controller

Audio

Realtek ALC1150 8-Channel High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio features

Absolute Pitch 192kHz/24-bit True BD Lossless Sound

Blu-ray audio layer Content Protection

Optical S/PDIF out port(s) at back panel

BD Audio Layer Content Protection

Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

Audio amplifier: Provides the highest-quality sound for headphone and speakers
