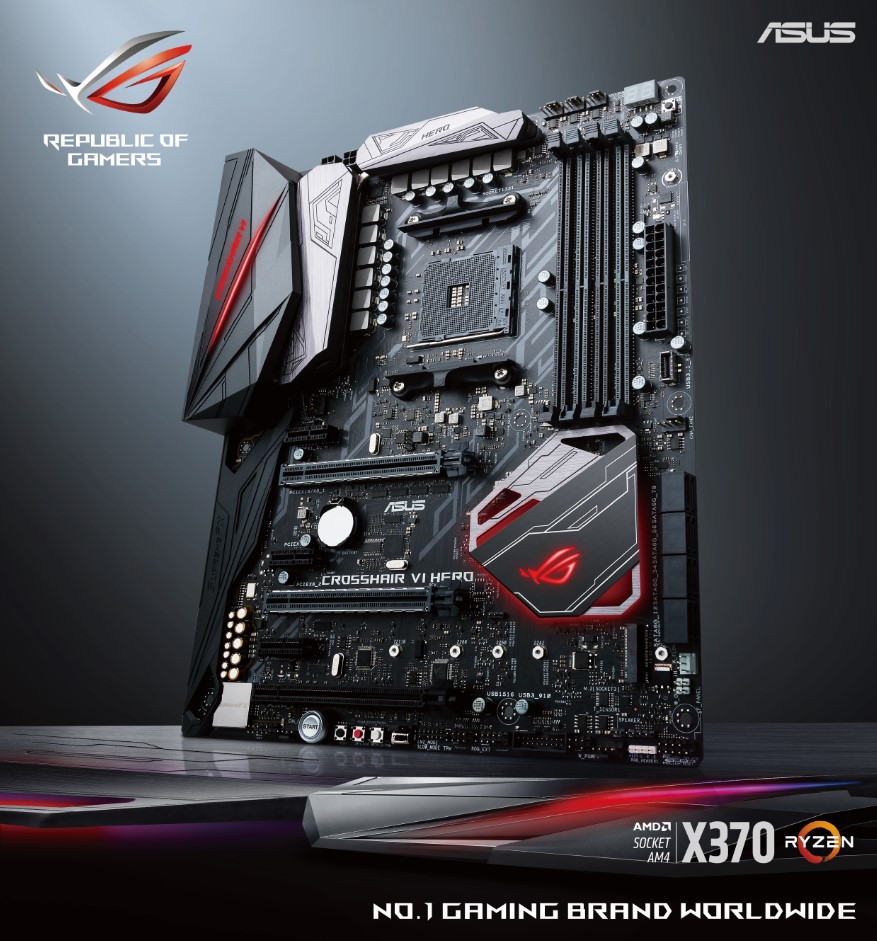

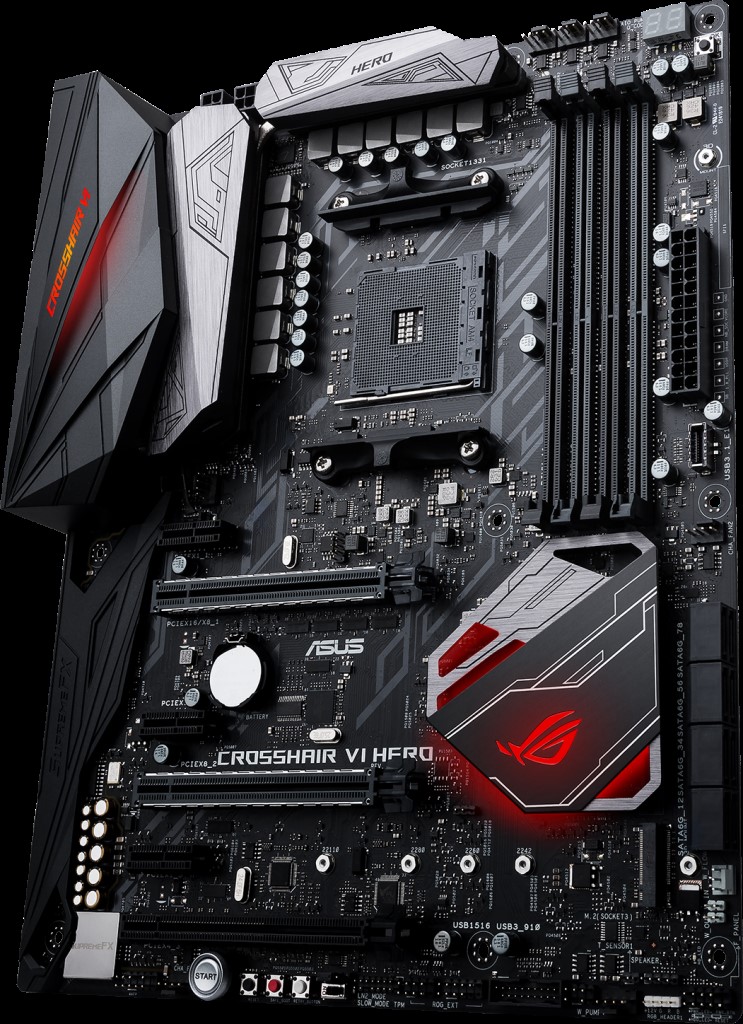

ASUS ROG Crosshair VI Hero

Note: The specifications are subject to change without notice.

CPU

AM4 socket for AMD^® Ryzen^™/7th Generation A-series/Athlon^™ Processors

Supports 14nm CPU

Chipset

AMD^® X370

Memory

AMD Ryzen^™ Processors

4 x DIMM, max. 64GB, DDR4 3200 (OC)*/2666/2400/2133MHz, non-ECC, un-buffered memory*

AMD 7th Gen A-series/Athlon^™ Processors

4 x DIMM, max. 64GB, DDR4 2400/2133MHz, non-ECC, un-buffered memory*

Dual channel memory architecture

* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.

Expansion Slots

AMD Ryzen^™ Processors

2 x PCIe® 3.0 x16 SafeSlots (supports x16, x8/x8)

AMD 7th Generation A-series/Athlon^™ Processors

1 x PCIe® 3.0 x16 SafeSlot (supports x8)

AMD X370 chipset

1 x PCIe® 2.0 x16 (max. at x4 mode)*

3 x PCIe® 2.0 x1

* PCIe® X4_3 slot shares bandwidth with PCIe® X1_1, PCIe® X1_2 and PCIe® X1_3.

Multi-GPU

AMD Ryzen^™ Processors

Supports NVIDIA^® 2-Way SLI^™ Technology

Supports AMD^® CrossFireX^™ Technology

AMD 7th Generation A-series/Athlon^™ Processors

Supports AMD^® CrossFireX^™ Technology

Storage

AMD Ryzen^™ Processors

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE® 3.0 x4 and SATA modes) storage devices support

AMD 7th Generation A-series/Athlon^™ Processors

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (SATA mode) storage devices support

AMD X370 chipset with RAID 0, 1, 10 support

8 x SATA 6Gbps ports

LAN

Intel^® Ethernet Controller I211-AT

Anti-surge LANGuard

ROG GameFirst IV

Audio

ROG SupremeFX S1220 8-Channel high-definition CODEC

Supports up to 32-Bit/192kHz playback*

Impedance sense for front and rear headphone outputs

ES9023P High Definition DAC

SupremeFX Shielding Technology

Jack-detection, Multi-streaming, and Front Panel Jack-retasking

Optical S/PDIF out port at back panel

Audio Feature:

Sonic Studio III

Sonic Radar III

*Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio

USB

AMD^® Ryzen^™/7th Generation A-series/Athlon^™ Processors

4 x USB 3.0 ports (4 ports at back panel[blue])

AMD X370 chipset:

1 x USB 3.1 front panel connector

6 x USB 3.0 ports (4 ports at back panel[blue], 2 ports at mid-board [grey])

6 x USB 2.0 ports (4 ports at back panel, 2 ports at mid-board [black])

ASMedia^® USB 3.1 controller:

2 x USB 3.1 ports (2 ports at back panel, Type-A and Type-C)

ROG Exclusive Features

Extreme Engine Digi+

MicroFine Alloy Choke

NexFET MOSFETs

10K Black Metallic Capacitors

Start Button

Reset Button

Safe Boot Button

Retry Button

BIOS Flashback Button

Clear CMOS Button

LN2 Mode

ROG RAMDisk

CloneDrive

ROG RAMCache II

KeyBot II

One-click overclocking

DirectKey

CLr CMOS

Power On

UEFI BIOS features :

Extreme Tweaker

Tweakers’ Paradise

ROG SSD Secure Erase

OC Profile

Graphics Card Information Preview

Special Features

ASUS Dual Intelligent Processors 5

5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App

ASUS Exclusive Features

AI Suite 3

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS C.P.R.(CPU Parameter Recall)

Gamer’s Guardian

SafeSlot

ASUS Q-Design

Q-Code

Q-Shield

Q-Connector

Q-LED (DRAM[yellow], CPU[red], VGA[white], Boot Device LED[green])

Q-DIMM

Back I/O Ports

1 x Clear CMOS button

1 x BIOS Flashback button

M.2 Wi-Fi Slot for E-key, type 2230

2 x USB 3.1 ports ( 1 x Type-C [black] and 1 x Type-A [red] )

8 x USB 3.0 ports [blue]

4 x USB 2.0 ports [black]

1 x Anti-surge LAN (RJ45) port

1 x Optical S/PDIF out

5 x Gold-plated audio jacks

Internal connectors

1 x USB 3.1 front panel connector

1 x USB 3.0 header supports additional 2 USB 3.0 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports [ via ROG_EXT header ]

8 x SATA 6Gbps connectors

1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support

1 x ROG extension (ROG_EXT) header

1 x 4-Pin CPU fan connector

1 x 4-Pin CPU_OPT fan connector

1 x 4-Pin AIO_PUMP connector

1 x 4-Pin W_PUMP+ connector

1 x 3-Pin W_FLOW connector

1 x 2-Pin W_IN connector

1 x 2-Pin W_OUT connector

3 x 4-Pin Chassis fan connectors

1 x Thermal sensor connector

1 x 24-pin EATX power connector

1 x 8-pin EATX 12V power connector

1 x 4-pin EATX 12V power connector

1 x Start button

1 x Reset button

1 x Safe Boot button

1 x Retry button

1 x LN2 mode jumper

1 x Slow mode switch

1 x System panel connector

1 x Front panel audio connector (AAFP)

2 x Aura RGB Strip headers

1 x TPM connector

1 x Speaker Header

Form Factor

ATX Form Factor

12 inch x 9.6 inch (30.5cm x 24.4cm)

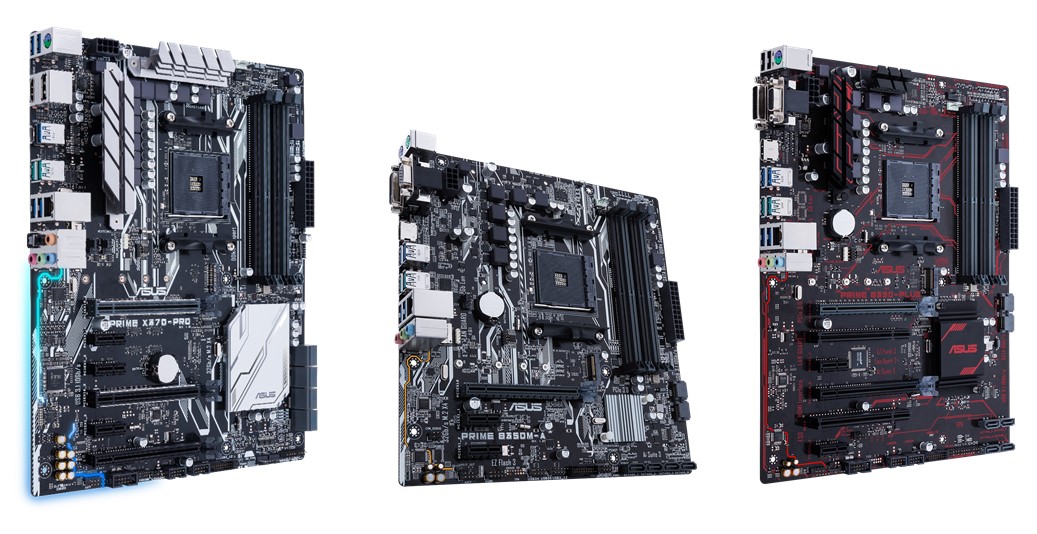

ASUS Prime X370-Pro

Note: The specifications are subject to change without notice.

CPU

AMD AM4 Socket for AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors

Supports AM4 Socket 14 nm CPU

Chipset

AMD^® X370

MemoryMemory

AMD Ryzen^™ Processors

4 x DIMM, Max. 64GB, DDR4 3200(OC) / 2933 (OC) / 2666/2400/2133MHz Non-ECC, Un-buffered Memory

AMD 7th Gen A-series/Athlon^™ Processors

4 x DIMM, Max. 64GB, DDR4 2400/2133MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Expansion Slots

AMD Ryzen^™ Processors

2 x PCIe® 3.0/2.0 x16 (x16 or dual x8)

AMD 7th Generation A-series/Athlon^™ Processors

1 x PCIe® 3.0/2.0 x16 (x8 mode)

AMD X370 chipset

1 x PCIe® 2.0 x16 (max at x4 mode) *

3 x PCIe® 2.0 x1

*PCIe®X16_3 slot shares bandwidth with PCIe®X1_1 and PCIe®X1_3.

Multi-GPU

AMD Ryzen^™ Processors

Supports NVIDIA^® 2-Way SLI^™ Technology

Supports AMD^® CrossFireX^™ Technology

AMD 7th Generation A-series/Athlon^™ Processors

Supports AMD CrossFireX^™ Technology

Storage

AMD Ryzen^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 4 mode)

AMD 7th Generation A-series/Athlon^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 2 mode)

AMD X370 chipset with RAID 0, 1, 10 support

8 x SATA 6Gbps port(s), gray,

LAN

Intel^® I211-AT, 1 x Gigabit LAN Controller(s)

ASUS Turbo LAN Utility

ASUS LAN Guard

Audio

Realtek^® S1220A 8-Channel High Definition Audio CODEC

Impedance sense for front and rear headphone outputs

Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

Front panel audio connector (AAFP)

Audio Feature:

Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors :

4 x USB 3.0 ports (4 at back panel, Type-A)

AMD X370 chipset:

1 x USB 3.1 front panel connector port

4 x USB 3.0 ports (2 at back panel, Type-A + Type-C, 2 at mid-board)

4 x USB 2.0 ports (4 at mid-board)

ASMedia^® USB 3.1 controller:

2 x USB 3.1 ports (2 at back panel, teal blue, Type-A)

Special Features

5-Way Optimization by Dual Intelligent Processors 5

Whole-system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS 5X Protection III :

ASUS SafeSlot Core: Fortified PCIe® Slot prevents damage

ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

ASUS Overvoltage Protection: World-class circuit-protecting power design

ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

ASUS DIGI+ VRM: 10 Phase digital power design

ASUS TPU :

Auto Tuning

ASUS EPU :

EPU

AURA :

Aura Lighting Control

Aura RGB Strip Headers

Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Exclusive Features :

AI Suite 3

Ai Charger

Turbo LAN

PC Cleaner

ASUS Quiet Thermal Solution :

Stylish Fanless Design Heat-sink solution & MOS Heatsink

ASUS Fan Xpert 4

ASUS EZ DIY :

ASUS OC Profile

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

ASUS Q-Shield

ASUS Q-Slot

ASUS Q-DIMM

ASUS Q-Connector

Overclocking Protection :

ASUS C.P.R.(CPU Parameter Recall)

Turbo App

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port

2 x USB 3.1 (teal blue) Type-A

1 x USB 3.0 Type-C

5 x USB 3.0

1 x Optical S/PDIF out

5 x Audio jacks

Internal connectors

1 x Aura RGB Strip Header

1 x USB 3.0 connector supports additional 2 USB 3.0 ports (19-pin)

2 x USB 2.0 connectors support additional 4 USB 2.0 ports

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)

8 x SATA 6Gbps connectors

1 x CPU Fan connector (1 x 4 -pin)

1 x CPU OPT Fan connector (1 x 4 -pin)

2 x Chassis Fan connectors (2 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x W_PUMP+ connector (1 x 4 -pin)

1 x 24-pin EATX Power connector

1 x 8-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x System panel (Q-Connector) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper

1 x 14-1 pin TPM connector

1 x COM port header

1 x USB 3.1 front panel connector

Form Factor

ATX Form Factor

12 inch x 9.6 inch (30.5cm x 24.4cm)

ASUS Prime B350-Plus

Note: The specifications are subject to change without notice.

CPU

AMD AM4 Socket for AMD Ryzen^™/7th Generation A-series/Athlon^™ II/Athlon^™ Processors

Supports CPU up to 8 cores

Chipset

AMD^® B350

MemoryMemory

AMD Ryzen^™ Processors

4 x DIMM, Max. 64GB, DDR4 3200(OC) / 2933 (OC) 2666/2400/2133MHz Non-ECC, Un-buffered Memory

AMD 7th Gen A-series/Athlon^™ Processors

4 x DIMM, Max. 4GB, DDR4 2400/2133MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Expansion Slots

AMD Ryzen^™ Processors

1 x PCIe® 3.0/2.0 x16 (x16 mode)

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors

1 x PCIe® 3.0/2.0 x16 (x8 mode)

AMD B350 Chipset:

1 x PCI Express 2.0 x16 slot(max.@x4 mode) *

2 x PCIe® 2.0 x1

2 x PCI

*PCIe® X16_2 slot shares bandwidth with PCIe®X1_1 and PCIe®X1_2.

Multi-GPU

Supports AMD CrossFireX^™ Technology

Storage

AMD Ryzen^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 4 mode)

AMD 7th Generation A-series/Athlon^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 2 mode)

AMD B350 chipset with RAID 0, 1, 10 support

4 x SATA 6Gbps port(s), gray,

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors

2 x Serial ATA 6.0 Gbps connectors

LAN

Realtek^® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek^® ALC887 8-Channel High Definition Audio CODEC

USB

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors :

4 x USB 3.0 ports (4 at back panel, blue)

AMD B350 chipset :

2 x USB 3.1 ports (2 at back panel, )

2 x USB 3.0 ports (2 at mid-board)

6 x USB 2.0 ports (2 at back panel, 4 at mid-board)

Special Features

ASUS 5X Protection III :

ASUS SafeSlot Core: Fortified PCIe® Slot prevents damage

ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

ASUS Overvoltage Protection: World-class circuit-protecting power design

ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

ASUS DIGI+ VRM: 6 Phase digital power design

ASUS Exclusive Features :

AI Suite 3

Ai Charger

PC Cleaner

ASUS Quiet Thermal Solution :

Stylish Fanless Design Heat-sink solution & MOS Heatsink

ASUS Fan Xpert2+

ASUS EZ DIY :

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

Multi-language BIOS

ASUS Q-Design :

ASUS Q-Slot

ASUS Q-DIMM

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port

2 x USB 3.1 (teal blue)

4 x USB 3.0 (blue)

2 x USB 2.0

3 x Audio jacks

Internal connectors

1 x Fan RGB header

1 x USB 3.0 connector) supports additional 2 USB 3.0 ports (19-pin)

2 x USB 2.0 connectors support additional 4 USB 2.0 ports

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe mode)

1 x COM port connector

6 x SATA 6Gbps connectors

1 x CPU Fan connector (1 x 4 -pin)

2 x Chassis Fan connectors (2 x 4 -pin)

1 x S/PDIF out header

1 x 24-pin EATX Power connector

1 x 8-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x System panel

1 x Clear CMOS jumper

Form Factor

ATX Form Factor

12 inch x 9.35 inch ( 30.5 cm x 23.7 cm )

Prime B350M-A

Note: The specifications are subject to change without notice.

CPU

AMD AM4 Socket for AMD Ryzen^™/7th Generation A-series/Athlon^™ II/Athlon^™ Processors

Supports CPU up to 8 cores

Chipset

AMD^® B350

MemoryMemory

AMD Ryzen^™ Processors

4 x DIMM, Max. 64GB, DDR4 3200(OC)/2933(OC 2666/2400/2133MHz Non-ECC, Un-buffered Memory

AMD 7th Generation A-series/Athlon^™ Processors

4 x DIMM, Max. 4GB, DDR4 2400/2133MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Expansion Slots

AMD Ryzen^™ Processors

1 x PCIe® 3.0/2.0 x16 (x16 mode)

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors

1 x PCIe® 3.0/2.0 x16 (x8 mode)

AMD B350 chipset

2 x PCIe® 2.0 x1

Storage

AMD Ryzen^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 4 mode)

AMD 7th Generation A-series/Athlon^™ Processors

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE® 3.0 x 2 mode)

AMD B350 chipset with RAID 0, 1, 10 support

4 x SATA 6Gbps ports, gray,

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors

2 x Serial ATA 6Gbps connectors

LAN

Realtek^® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek^® ALC887 8-Channel High Definition Audio CODEC

USB

ASMedia^® USB 3.1 controller :

2 x USB 3.1 ports (2 at back panel, blue)

AMD Ryzen^™/7th Generation A-series/Athlon^™ Processors :

4 x USB 3.0 ports (4 at back panel, )

AMD B350 chipset :

2 x USB 3.0 ports (2 at mid-board)

4 x USB 2.0 ports (4 at mid-board)

Special Features

ASUS 5X Protection III :

ASUS SafeSlot Core: Fortified PCIe® Slot prevents damage

ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

ASUS Overvoltage Protection: World-class circuit-protecting power design

ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

ASUS DIGI+ VRM:6 Phase digital power design

ASUS Exclusive Features :

AI Suite 3

Ai Charger

PC Cleaner

ASUS Quiet Thermal Solution :

Stylish Fanless Design Heat-sink solution

ASUS Fan Xpert

ASUS EZ DIY :

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

Multi-language BIOS

ASUS Q-Design :

ASUS Q-Slot

ASUS Q-DIMM

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse port (green)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port

2 x USB 3.1 (teal blue)

4 x USB 3.0 (blue)

3 x Audio jacks

Internal connectors

1 x Fan RGB header

1 x USB 3.0 connector supports additional 2 USB 3.0 ports (19-pin)

2 x USB 2.0 connectors support additional 4 USB 2.0 ports

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe mode)

1 x COM port connector

6 x SATA 6Gbps connectors

1 x CPU Fan connector (1 x 4 -pin)

1 x Chassis Fan connector (1 x 4 -pin)

1 x S/PDIF out header

1 x 24-pin EATX Power connector

1 x 8-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x System panel

1 x Clear CMOS jumper

1 x Speaker connector

Form Factor

mATX Form Factor

9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
