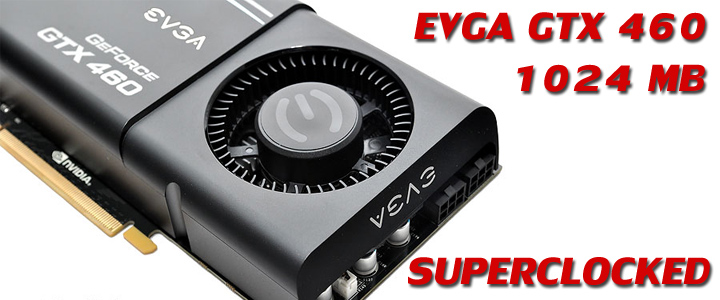

EVGA GeForce GTX 460 SuperClocked 1024MB GDDR5 Review : Introduction & Specifications (1/19)

...สวัสดีครับ สำหรับวันนี้ Vmodtech.com เราก็ยังคงมี Graphic Card แรงๆมาให้ชมกันไม่ขาดสายอยู่เช่นเคย โดยการ์ดในคราวนี้จะมากันในแบรนด์ดังอย่าง EVGA ที่มากันในชื่อรุ่น EVGA GeForce GTX 460 SuperClocked 1024MB GDDR5 ครับ ก่อนอื่นไปชมรายละเอียดต่างๆของการ์ดตัวนี้จากเว็บไซต์ของผู้ผลิตกันก่อนนะครับ

EVGA GeForce GTX 460 SuperClocked 1024MB EE (External Exhaust)

Specifications

Performance

• NVIDIA GTX 460
• 763 MHz GPU
• 336 CUDA Cores
• 400 MHz RAMDAC

Memory

• 1024 MB, 256 bit
• 3800 MHz (effective)
• 121.6 GB/s Memory Bandwidth

Interface

• PCI-E 2.0 16x
• DVI-I, DVI-I, Mini-HDMI
• SLI Capable

Resolution & Refresh

• 240Hz Max Refresh Rate
• 2048x1536 Max Analog
• 2560x1600 Max Digital

Product Warranty This product comes with a 2 year limited warranty with registration within 30 days of purchase. Requirements Minimum of a 450 Watt power supply. (Minimum recommended power supply with +12 Volt current rating of 24 Amps.)

• Two available 6-pin PCI-E power dongles

Notes: Built from the ground up for DirectX 11, the EVGA GeForce GTX 460 delivers the ultimate next generation gaming experience. With up to 4x the DirectX tessellation performance of the competition*, the EVGA GeForce GTX 460 packs incredible detail and blazing fast frames into your games – without blowing your budget. In addition, the EVGA GeForce GTX 460 supports NVIDIA 3D Vision, Surround Gaming, PhysX and CUDA technologies making this card the ultimate value for the gaming enthusiast. And with award winning support, utilities and community, you can’t go wrong with the GTX 460 from EVGA. Learn more here.

Features

Key Features

• Microsoft DirectX 11 support DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API’s key graphics feature, GPU-accelerated tessellation.
• NVIDIA CUDA technology CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.
• NVIDIA PhysX technology Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
• NVIDIA SLI Ready Industry leading 3-way NVIDIA SLI technology offers amazing performance scaling by implementing AFR (Alternate-Frame-Rendering) for the world's premier gaming solution under Windows 7 with solid, state-of-the-art-drivers.
• NVIDIA 3D Vision Surround Ready Expand your games across three displays in full stereoscopic 3D for the ultimate “inside the game” experience with the power of NVIDIA 3D Vision and SLI technologies. NVIDIA® Surround™ also supports triple screen gaming with non-stereo displays.
• NVIDIA PureVideo HD technology The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.
• PCI Express 2.0 support Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
• Two dual-link DVI-I connectors Able to drive industry’s largest and highest resolution flat-panel displays up to 2560x1600 and with support for High-bandwidth Digital Content Protection (HDCP).
• Dual-link HDCP-Capable Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc format, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays.
• Microsoft Windows 7 Support Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 will not only make today’s PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
• OpenGL 4.0 Support Ensures top-notch compatibility and performance for OpenGL applications.
• One mini-HDMI 1.4 connector

.

More Informations >>Click<<

.

ตามด้วยตารางเปรียบเทียบสเป็คคร่าวๆกับการ์ดรุ่นอื่นๆกันต่อเลยครับ

	GeForce GTS 450	Radeon HD 5770	GeForce GTX 460	Radeon HD 5830	GeForce GTX 465	Radeon HD 5850	GeForce GTX 470	Radeon HD 5870	GeForce GTX 480	Radeon HD 5970
Shader units	192	800	336	1120	352	1440	448	1600	480	2x 1600
ROPs	16	16	32	16	32	32	40	32	48	2x 32
GPU	GF106	Juniper	GF104	Cypress	GF100	Cypress	GF100	Cypress	GF100	2x Cypress
Transistors	1170M	1040M	3200M	2154M	3200M	2154M	3200M	2154M	3200M	2x 2154M
Memory Size	1024 MB	1024 MB	768 MB	1024 MB	1024 MB	1024 MB	1280 MB	1024 MB	1536 MB	2x 1024 MB
Memory Bus Width	128 bit	128 bit	192 bit	256 bit	256 bit	256 bit	320 bit	256 bit	384 bit	2x 256 bit
Core Clock	783 MHz	850 MHz	675 MHz	800 MHz	607 MHz	725 MHz	607 MHz	850 MHz	700 MHz	725 MHz
Memory Clock	900 MHz	1200 MHz	900 MHz	1000 MHz	802 MHz	1000 MHz	837 MHz	1200 MHz	924 MHz	1000 MHz
Price	$129	$159	$199	$230	$289	$310	$349	$400	$499	$630

...จะเห็นได้ว่าสเป็คมาตรฐานที่ทาง NVIDIA วางไว้ จะใช้หน่วยความจำขนาด 768MB 192 bit แต่การ์ดของ EVGA ที่เรานำมาทดสอบคราวนี้ จะมีหน่วยความจำขนาด 1024MB 256 bit เหนือมาตรฐานกันไปเลย ซึ่งหลังจากเปรียบเทียบกันจบแล้ว หน้าถัดไปก็ไปชมตัวการ์ดกันต่อเลยครับ

.
